Chapter 2 Download RStudio & Basics of R

2.1 Setting up RStudio

Why use R for data visualization?

  • R is free.
  • Often, less codes are needed in R to plot an elegant graph.
  • for/while loops (basic concepts in programming) are not necessary in R to make a production-quality graph.
  • R is the best software for statistical analysis.

Other available resources for R

Download requirements for RStudio

Open RStudio

  • Rstudio is where people do R programming.
  • You can type codes (commands) into the console (bottom-left panel).
    • > means that the console is ready to receive more code.
    • + means your code is not complete.
  • You can also write (longer) codes in the script within the code editor (top-left panel).
    • The code editor will run the script into the console.
    • A new script can be opened by clicking: File -> New -> R Script.
  • You can run a script by clicking ’Run” with the green arrow or by typing ctrl + enter. It is labeled with the red circle.
    • Or you can just type your codes directly into the console.

Let’s make a folder and set it as working directory

Setting your working directory, image from https://www.ucl.ac.uk/~uctqiax/PUBLG100/2015/faq/setwd.html

Figure 2.2: Setting your working directory, image from https://www.ucl.ac.uk/~uctqiax/PUBLG100/2015/faq/setwd.html

2.1.1 How to run your code

  • You can run code in 2 ways.

  • First, you can type it in the script and run it after highlighting the codes you would like to run.

How to run your code - script

Figure 2.3: How to run your code - script

  • Second, you can type your code directly in the console.

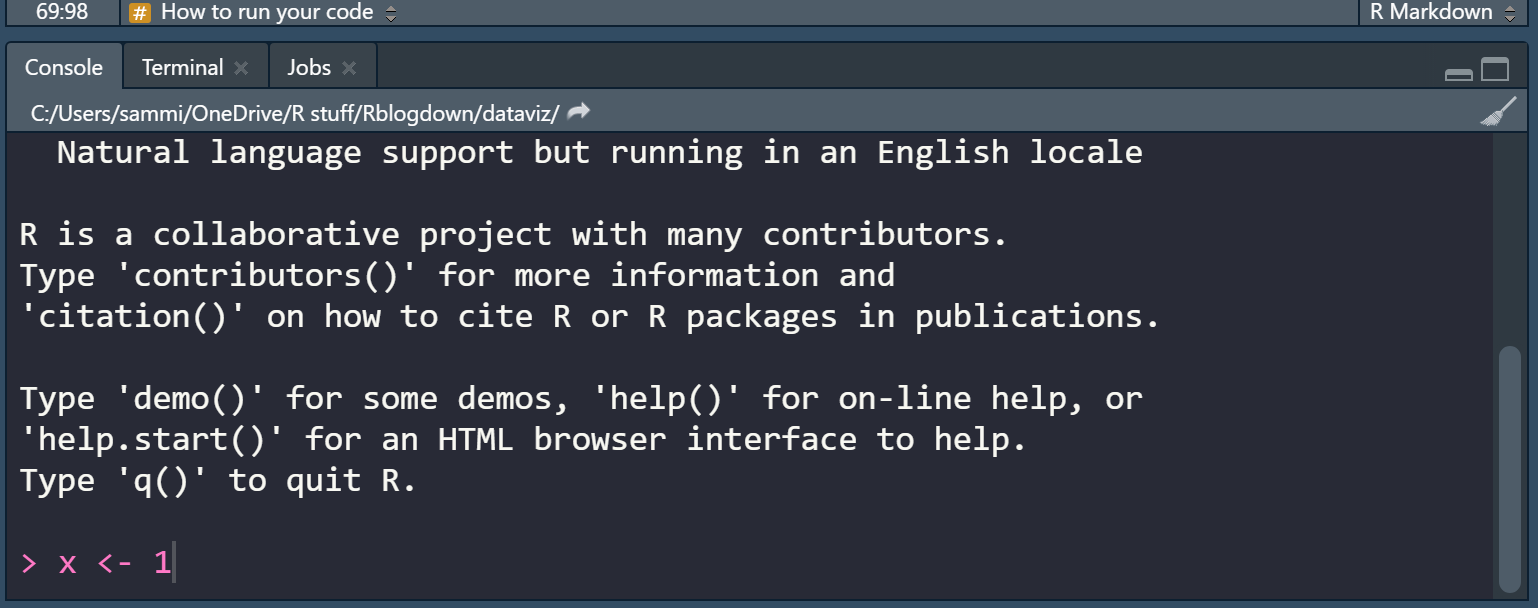

How to run your code - console

Figure 2.4: How to run your code - console

2.2 Basics of R

Let’s type some codes

  • Capitalization, punctuations and brackets are all important.
  • ' ' and " " mean the same.
  • However, ' " are not paired. So they will not work.
  • = and <- mean equivalent.
    • I often use <-.
  • Type ? when you are not sure about the code (ex. ?t.test)
  • A code becomes comment when it is preceded by #.
    • Try typing # g = 3 and see if the number gets stored in g by typing g in the console.
x = 3 # x equals to 3
a <- 4 # a equals to 4
d <- 'Group' # gr is equal to a character 'Group', which is not a number.
e <- "Group"
d == e # 'Group' and "Group" are equal
## [1] TRUE
# g = 3 # its a comment
  • Notice that I used == to test if d and e are equal. Therefore, == and = mean different. == tests if two things are equal. = sets two things to be equal.
    • d == e returns TRUE because they are both 'Group'. TRUE is equivalent to 1 numerically.
  • Now let’s check if x and a are equal.
x == a
## [1] FALSE
  • It returns FALSE because x and a are not equal. This is correct because 3 and 4 are not equal. FALSE equals to 0 numerically.

  • Below are more examples showing that TRUE = 1 and FALSE = 0.

TRUE + FALSE # 1 + 0
## [1] 1
TRUE + TRUE # 1 + 1
## [1] 2
FALSE + FALSE # 0 + 0
## [1] 0
TRUE*2 # 1 * 2
## [1] 2
TRUE*FALSE # 1 * 0
## [1] 0

How can I learn most effectively with the notes?

  • Don’t just read it.
  • Don’t just copy and paste the codes and run them in RStudio (ctrl + c & ctrl + p). Make sure you type each code.
  • You can also change your code and see if it still works.
  • If you are not sure of your code, you can type ? before the function.
  • If you are still not sure after reading the notes, check out Chapter 3 of R for Data Science: https://r4ds.had.co.nz/

More installation

  • R is an old programming language.
  • So, people, such as statisticians and programmers, have created more functions in R in the form of the package to update the language. They are free but they have to be downloaded separately.
    • A package can contain several functions.
    • In this tutorial, you will mainly be using ggplot2 package, which is elegant and flexible for visualizing data.
    • Also, you will be using smplot2 package. It improves ggplot2 graphs visually.
  • So, you will need to install some packages, such as ggplot2 and smplot2. Please type the codes below.
install.packages('smplot2)
  • You only need to install them once, but you will need to reload them whenever you start a new session in RStudio using the function library().
install.packages('tidyverse') # only need to install once
install.packages('cowplot')
# packages must be loaded every time by using library() when you run your script

library(tidyverse) # it has ggplot2 package
library(cowplot) # it allows you to save figures in .png file
library(smplot2)
  • Now let’s make some graphs in the subsequent chapters.
